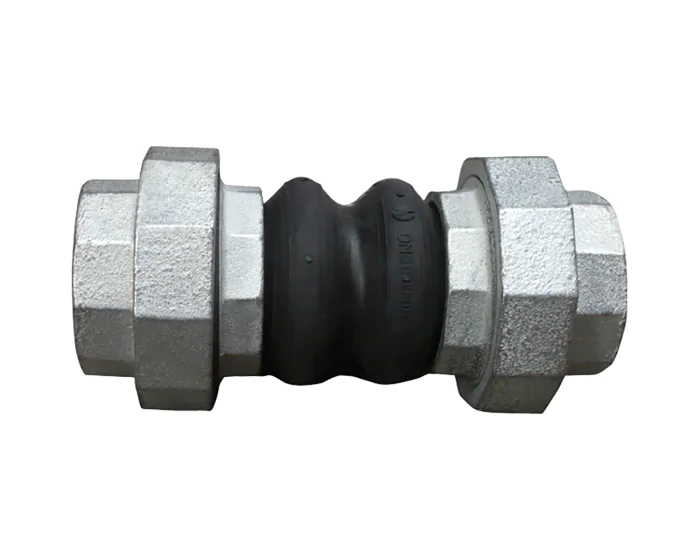

This elastomeric expansion joint 1504 series from the Sferaco range, with EPDM bellow, union fittings Galvanised cast iron, Nylon fabric reinforcement, PN16 for water supply and distribution networks.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Flange or fitting material | Galvanised cast iron |
| Application | Water supply and distribution network |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 200.0 |
| Fluid | Cold water |
| Body material | EPDM |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF EPDM 1/2'' | 1504004 | S1011471 |
€18.67
(excl. btw)
|
add to cart |
| BSP FF EPDM 3/4'' | 1504005 | S1011472 |
€18.67
(excl. btw)
|
add to cart |
| BSP FF EPDM 1'' | 1504006 | S1011473 |
€18.67
(excl. btw)
|
add to cart |
| BSP FF EPDM 1''1/4 | 1504007 | S1011474 |
€18.67
(excl. btw)
|
add to cart |
| BSP FF EPDM 1''1/2 | 1504008 | S1011475 |
€22.17
(excl. btw)
|
add to cart |
| BSP FF EPDM 2'' | 1504009 | S1011476 |
€28.06
(excl. btw)
|
add to cart |
| BSP FF EPDM 2''1/2 | 1504010 | S1011477 |
€40.96
(excl. btw)
|
add to cart |
| BSP FF EPDM 3'' | 1504011 | S1011478 |
€53.04
(excl. btw)
|
add to cart |
